Module 2: Application & Agent Architectures
Designing an LLM application is not just about picking a model—it’s about picking (and often combining) the right architecture pattern along a spectrum that runs from a single LLM call to fully-autonomous multi-agent swarms.
Below is an overview of the architectural patterns and recommendations on when to stop at a workflow vs. when to move to an agent.
Architecture Patterns
These seven design patterns form a graduated staircase from rigid pipelines to autonomous, self-correcting agents, giving you reusable blueprints at every rung of complexity.
By recognising where your problem sits on that staircase, you can start with the simplest reliable workflow and introduce additional autonomy only when rising uncertainty, scale, or dynamic goals make model-driven decision-making the smarter trade-off.
Workflow patterns
These workflows show a deterministic path that is easy to reason about and debug.
| Pattern | Essence | When it shines | Typical examples |
|---|---|---|---|
| Prompt Chaining | Pipe the output of one LLM call straight into the next to decompose a task into fixed steps. | Any job that naturally breaks into a “step 1 → step 2 → step 3” script. | Outline → validate → draft a document; multi-stage data ETL. |
| Routing / Handoff | A “router” LLM first classifies the request, then hands it to a specialised prompt / model / agent. | Heterogeneous traffic where different skills or price-points are optimal. | Customer-support triage, tiered model stacks (cheap vs. premium), content-type dispatch. |
| Parallelisation | Split independent subtasks or multiple perspectives, run them concurrently, then aggregate. | Latency-sensitive work or problems that benefit from diversity / voting. | RAG with query splits, document section summaries, “best-of-N” idea generation. |
Agentic patterns
These patterns show a model-driven path that is more flexible and can adapt to changing circumstances.
| Pattern | Essence | When it shines | Typical examples |
|---|---|---|---|
| Reflection (Evaluator-Optimiser) | The model critiques its own output and iterates until criteria are met—generation → self-assessment → refine loop. | Quality-critical tasks where first drafts often miss the mark. | Code that compiles & passes tests, self-RAG answer checking, polished writing. |
| Tool Use (Function Calling) | The LLM decides to invoke external functions/APIs, receives the results, then writes the final answer. | Anything needing fresh data, side-effects, or capabilities beyond text. | Calendar booking, database look-ups, smart-home control, code execution. |
| Planning (Orchestrator-Workers) | A planner LLM dynamically drafts a multi-step plan, delegates subtasks to worker agents, and synthesises the results, re-planning if needed. | Open-ended, multi-phase goals where steps are unknown until you start. | Feature implementation pipelines, research reports, multi-modal creative projects. |
| Multi-Agent Collaboration | Multiple agents with distinct roles/personas/toolsets coordinate—via a manager or peer-to-peer—to reach a shared goal. | Complex, multifaceted problems that mirror real-world teams or debates. | Software project teams (PM, coder, tester), debate simulators, collaborative story writing, scientific “lab” agents. |
(Source: Phil Schmid)
How to pick the right pattern
- Start simple. If you can pre-write the steps, a workflow pattern is faster, cheaper, and easier to debug.
- Add autonomy only for uncertainty. Shift to Reflection, Planning, or Multi-Agent once the task demands dynamic decision-making or parallel specialisation.
- Combine patterns pragmatically. Real systems often nest these blocks: e.g., a Planning agent that assigns Tool-Using workers and then reflects on their outputs.

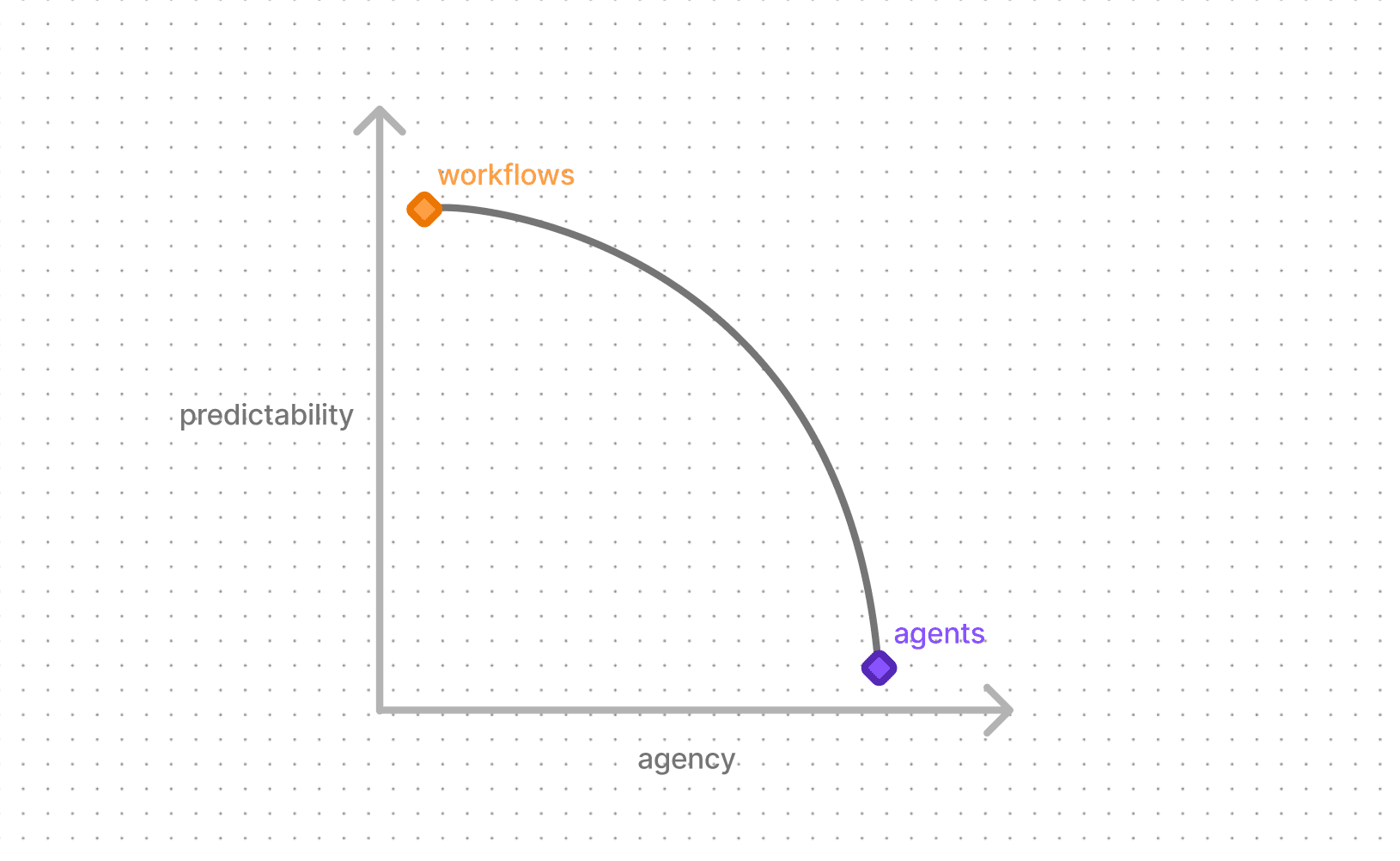

This choice introduces a trade-off between predictability and agency: the higher you climb, the more freedom your system gains, but the harder it becomes to anticipate or constrain every step.
(source: Langchain)
With this framing in mind, let’s zoom in on a set of canonical patterns you can lift straight into your own projects. Each pattern is a ready-made blueprint that balances the trade-offs outlined above in a slightly different way — pick the one that maps best to your constraints on cost, latency, and reliability.
